Following on from Part 6 and Part 3 in this series, HAO will today release its replica Colt Canada ambi-mag catch assembly and receiver extension nuts.

54458134_1274696846063725_1328396250365558784_n54386827_378861066038313_9181829914871988224_n54279203_792142801142056_2212527809551663104_n54525269_586961235105103_1930235174147063808_n

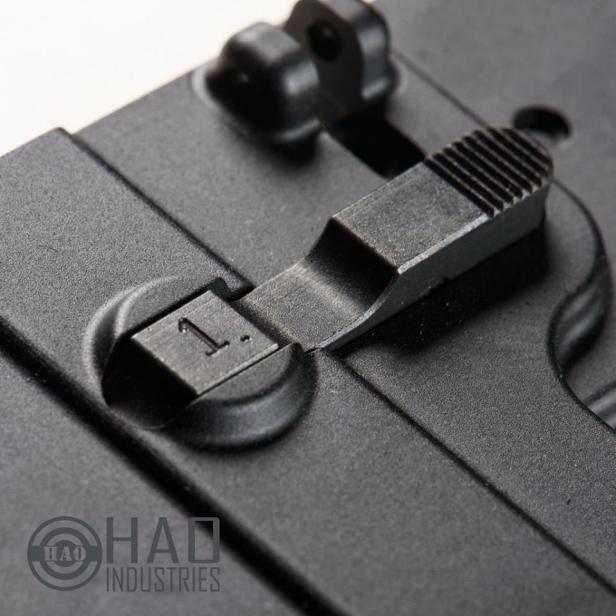

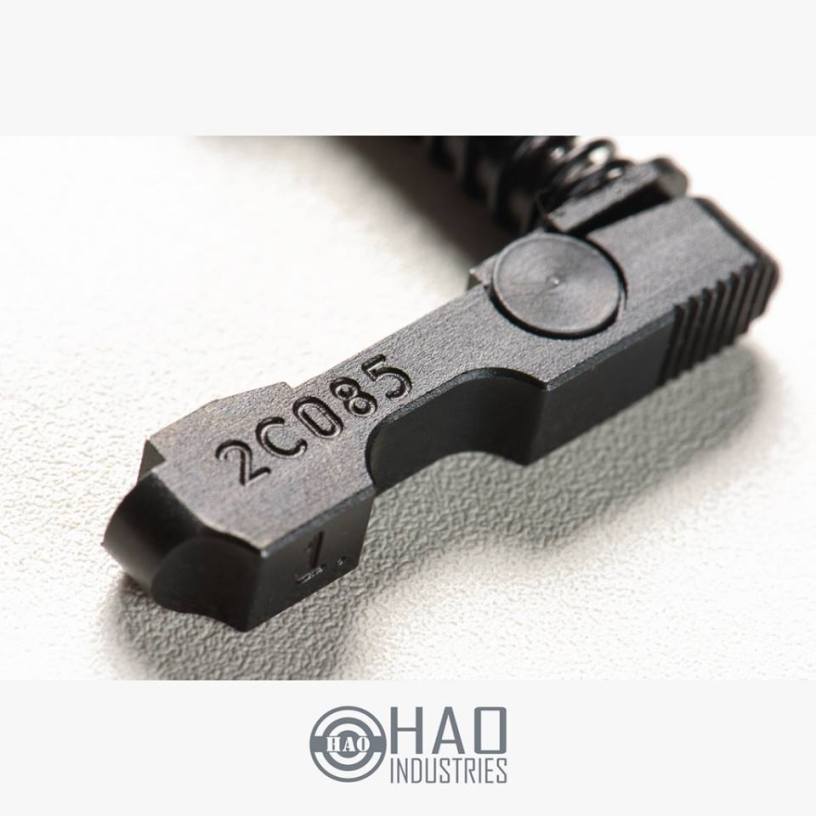

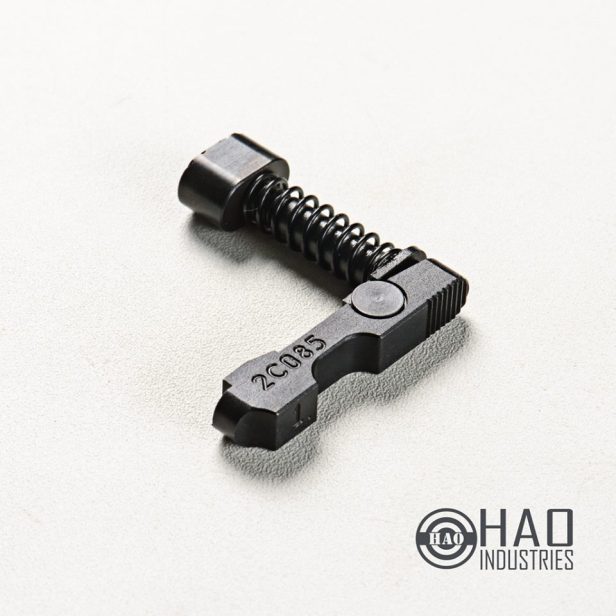

As usual these items are built to RS spec, although care has been taken to modify the catch structure of the mag catch assembly.

Many who own the RS Colt Canada mag catch will concur that it doesn’t like some types of replica mag. This is because airsoft mags are often flat and angular at the business end – as opposed to the curved fairings which retain ammo up top on the RS. As such, replica mags often hit what feels like a brick wall when inserted in to the mag well. This is because of a sharp ledge on the Colt Canada mag catch.

To remedy this, HAO has chamfered the edge of their version.

The mag catch assembly is CNC’d from S45C steel, which I hear is difficult to cut. That will be reflected in the price.

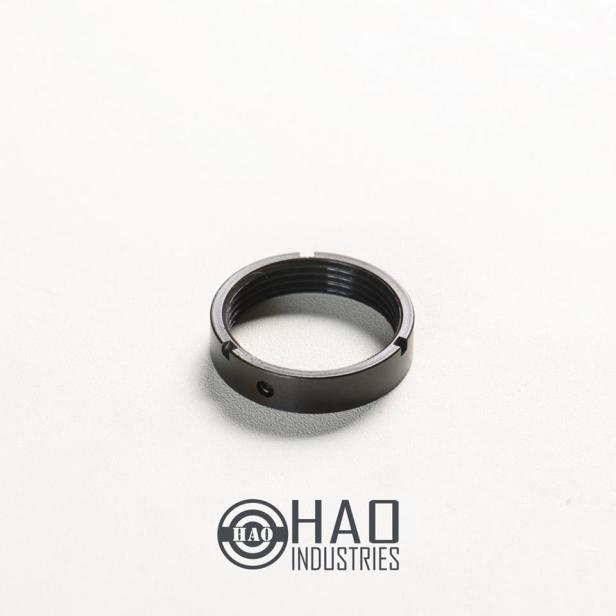

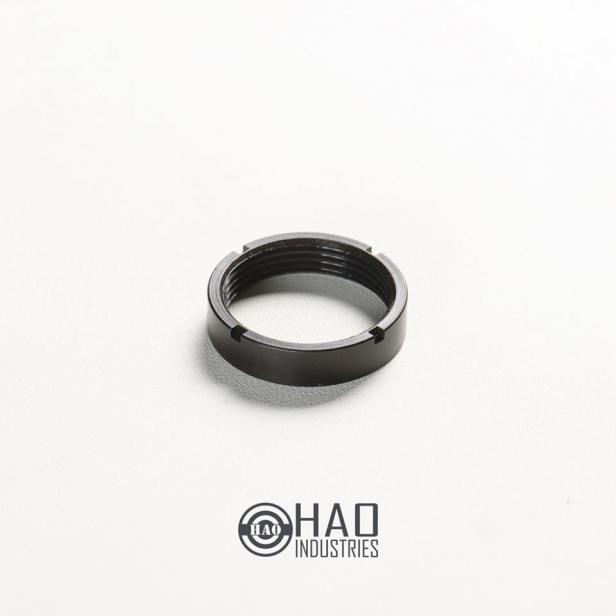

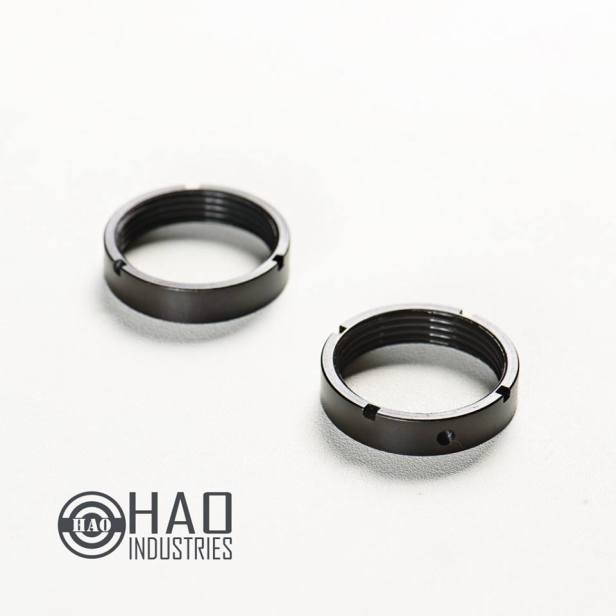

HAO has also decided to make both the three stake and four stake versions of Colt Canada’s receiver extension nut. ‘Stake’ refers to the staking notches arranged around the nut’s circumference, which help prevent loosening. Apparently both three and four stake versions are in circulation (and exhibit the same Colt Canada product number).

The Colt Canada receiver extension nut is a bit different from the current Colt ‘castle nut’ (as depicted by most replicas) and has been noted as one of those unique features which help define the L119 series.

55576752_2391997084157873_726945084821471232_n54517831_371415056784069_7188873842947784704_n54396422_613108982450687_7200540004915871744_n54372196_284516565807015_3371933469234954240_n

HAO is going live with these items at midnight Taiwan time (GMT+8), which is 4pm in the UK.

And here’s where to find them.

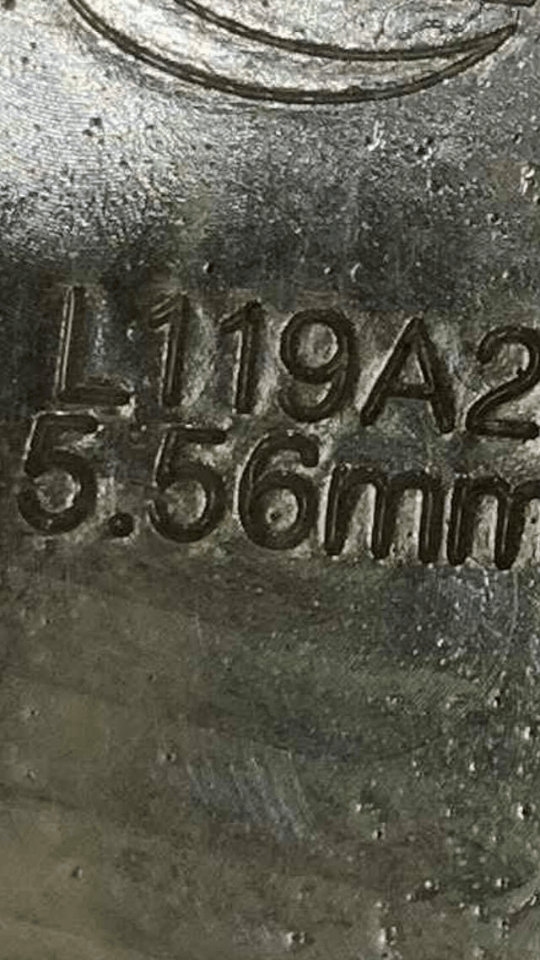

Oh – there’s this as well…

54520269_1157856174386027_2562911370408361984_n

More, soon.
